Detailed Product Description
| Connection:: | Welding | Type:: | Long Type |
| Head Code:: | Round | Angle:: | 90 Degree |
| HS Code:: | 73072900 | Material:: | Grade 316 |
| Surface:: | Polished Outside And Clean On The Inside | | |

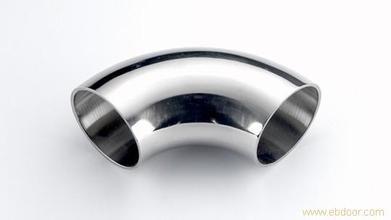

Grade 316 90 Deg Bend Long Type 1.5 x D to BS4825 Standard
Quick detail:
Products name | 90 deg bend long type 1.5 x D |
Standard | BS4825 |
Size | 1/2”-4” |
Thickness | 1.6mm,2.0mm |
Material | Grade 316 |
Surface | Outside stain polish(240G),inside polish as inquiry of customer |
Description:
Milking machine parts
Material: SS304 SS304L SS316 SS316L
Outsize diameter/Thickness : 1” x 1.6mm,1-1/2” x 1.6mm,2” x
1.6mm,2-1/2” x 1.6mm,3” x 1.6mm,4” x 2mm,6” x 2.1mm
Surface:1) ID/OD polishing
2) Only ID polishing
3) Only OD polishing
4) Unpolished
Roughness:#180,#240,#320,#400(Ra≤0.8um,0.6um,0.5um,0.4um)
The surface polish including the hairline finished and mirror
finished
Marking:size,material,heart number
HS code number:73072900
The sanitary elbow main used in the
pharmacy,beer,food,dairy,beverage,cosmetic and chemical industries
We also can offer the best price according your drawing
Chemical compositions of stainless steel:
Grade | C (max) | Mn (max) | P (max) | S (max) | Si (max) | Ni | Cr | Mo |
304 | 0.080 | 2.0 | 0.040 | 0.030 | 0.750 | 8 to 11 | 18 to 20 |
|
304L | 0.035 | 2.0 | 0.040 | 0.030 | 0.750 | 8 to 13 | 18 to 20 |
|
316 | 0.080 | 2.0 | 0.040 | 0.030 | 0.750 | 11 to 14 | 16 to 18 | 2 to 3 |
316L | 0.035 | 2.0 | 0.040 | 0.030 | 0.750 | 10 to 15 | 16 to 18 | 2 to 3 |
Tolerances:
Outside diameter
The tolerance on the outside diameter, in the straight length,
shall be as follows:
(a) Up to and including 101.6mm diameter +/-0.5% with a minimum of
+/-0.1mm.
(b) Over 101.6mm diameter +/-0.75%
Thickness:
The tolerance on wall thickness, in the straight length, shall be
+/-10% of the specified value
Face to centre-line length
The tolerance on face to centre-line length/centre to end, shall be
as follows:
(a) Upto and including 101.6mm diameter+0.5,-0mm
(b) Over 101.6mm diameter +1.0,-0mm
Drawing:
Code 120
90 Deg Bend Long Type 1.5 x D to BS4825 Pt 2 Imperial |
| A | B | C | R |
| ½ | 12.9 | 1.6 | 60 | 25.0 |
| ¾ | 19.1 | 1.6 | 60 | 32.0 |
| 1 | 25.4 | 1.6 | 65 | 37.5 |
| 1½ | 38.1 | 1.6 | 85 | 57.0 |
| 2 | 50.8 | 1.6 | 110 | 76.5 |
| 2½ | 63.5 | 1.6 | 135 | 95.3 |
| 3 | 76.1 | 1.6 | 155 | 114.2 |
| 4 | 101.6 | 2.0 | 195 | 152.5 |
