Y Type Strainer Thread End 800WOG NPT BSPT BSPP,DIN2999,1/2"-4"

Ask Lasest Price
Brand Name :	commission
Certification :	ISO9001: 2008, CE
Model Number :	Y11W
Price :	negotiation
Delivery Time :	within few working days(depends on your quantity)
Payment Terms :	L/C,T/T,FOB.CNF.CIF.PAYPAL,WESTUNTI
Supply Ability :	flexible

Add to Cart

Product Details
Company Profile

Y Type Strainer Thread End 800WOG NPT BSPT BSPP,DIN2999,1/2"-4"

Material:	CF8/CF8M/WCB	Pressure:	800WOG
Connection:	NPT,BSPT,BSPP,DIN2999	Size:	1/2"-4"
Price Term:	FOB/CNF/CIF	•Competitive Advantages:	Well And High Quality
Packing:	Paper Box ,Plywood Cases	Main Export Markets::	•Europre Markets •Central/South America •Middle East/Africa •Asia(Singapore,Taiwan)

Key words:Y strainer Thread End 800WOG,NPT,BSPT,BSPP,DIN2999,1/2"-4",CF8/CF8M/WCB

www.kcmtech-valve.com

1) DESCRIPTION:

STANDARD:

. Design: ASME B16.34
. Valve pressure: 800PSI(5.52MPa)WOG PN40
. Pipe thread: ANSI B1.20,BS21/2779,DIN259/2999,ISO228-1
. Face to face: DIN3202-M3
. Inspection & Testing: API598

www.kcmtech-valve.com

2) PRODUCT DESIGN DRAWING:

Y Type Strainer Thread End 800WOG NPT BSPT BSPP,DIN2999,1/2"-4"

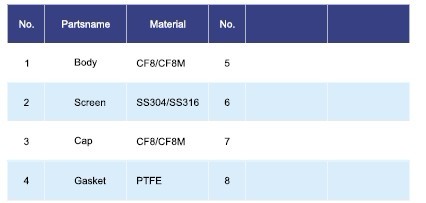

3) PARTS MATERIAL:

4) SIZES:

Y Type Strainer Thread End 800WOG NPT BSPT BSPP,DIN2999,1/2"-4"
